Pro-Tec trim system pics?

[SuperJETT]

http://www.x-h2o.com/threads/8361 and freestyleriverrat's buildup thread, mark44 has one I believe but not sure if he's posted pics yet.



[michael950]

Not sure if this is exactly what you wanted, but it is what I have.

When you install the trim cable, make sure you give yourself enough room to deal with any hoses or fittings in the pump area.

In other words, do not install the cable so it butts up against the cooling line or steering cable and leave you with no room to work.



[michael950]

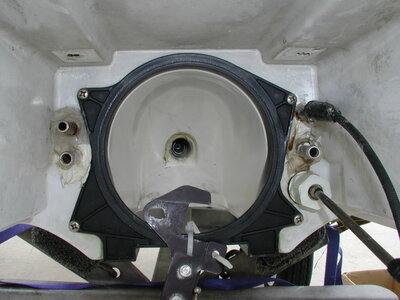

This is the way it goes:

http://www.x-h2o.com/attachment.php?attachmentid=11745&d=1160255917



[SuperJETT]

Edwin, I would put the trim cable on the top left of the pump cavity, above the pump. I did, and it's a straight shot to the pull point. Any bends you have will induce stretch in the cable, so the straighter the better.

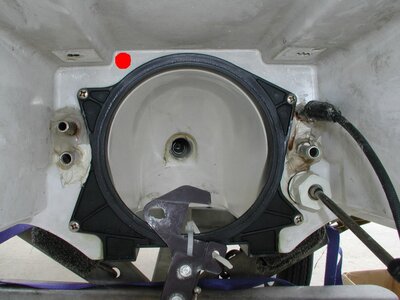

I have mine where the red dot is in the attachment.

This is the way it goes:

http://www.x-h2o.com/attachment.php?attachmentid=11745&d=1160255917



[Marshj]

Cheater!! No trims allowed for the cherry poper contest!:sneaky:



[WaveDemon]

Cheater!! No trims allowed for the cherry poper contest!:sneaky:

^^^ what he said. cheater.



[michael950]

cool. thanks.

the trim cable tube should be on the starboard (right if facing from rear) side of the boat, right? i have a trim cable tube running through already, but its on the port side.

thanks. any pics of it with the brackets mounted up also?

The cable was installed when I got the ski, this was a photo from my old ski. He did a poor job, and am surprised there was not wet foam, he used silicone and it was pooly applied.

Pro-Tecs Instructions are at the bottom of this link.
