MSD Enhancer Wiring Trouble

[ksarge91]

Hoping someone can help me out here. I have an ebox out of a roundnose superjet that was done by JSS two years ago. I am trying to wire in an MSD enhancer.

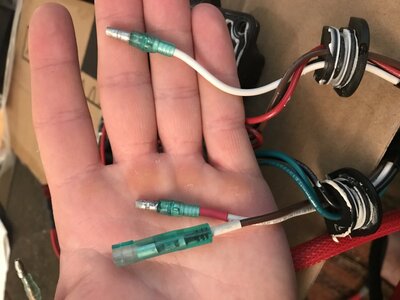

When I pull the stock CDI out the disconnected wires are:

Start/Stop Switch: White
Stator: White/Red and Brown/white
Coil: Black and Red

OEM CDI has 6 wires (there was a 7th that JSS cut, believe temp sensor)

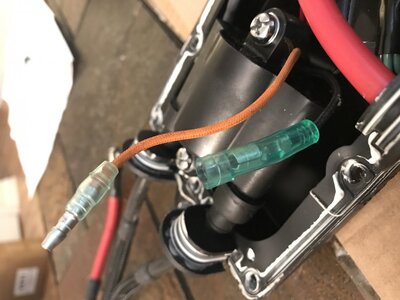

Black (male): To black on coil
Orange (female): To red on coil
White (female): to white on start/stop switch
White/Red (female): To white/red stator
Brown/white (male): To brown/white on stator
Black (eyelet): To ground.

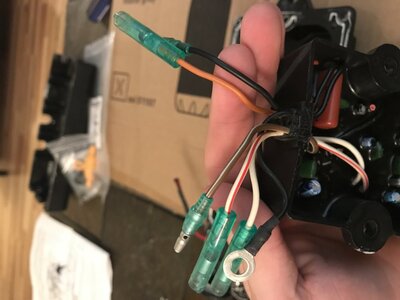

MSD Enhancer has the following:
White (female):
White (male but changed to female):
Red with jumper (1 male, 1 female):
Orange (female):
Pink (female):
Brown (male):
Black with jumper (1 female, 1 eyelet):
Black (male):

I am pretty sure the wires from the MSD enhancer are as follows:
White (female): To white start/stop switch
White (male but changed to female): To white/red stator
Red with split (1 male, 1 female): ???
Orange (female): To red coil
Pink (female): Not used (temp sensor)
Brown (male): To brown/white stator
Black with split (1 female, 1 eyelet): ???
Black (male): To black coil

What's confusing me are the red with the split and black with the split. Obviously the eyelet on the black split goes to the ground but where does the female go? And no idea where either the male or female red on the red split go. Doesn't help that I'm colorblind

Any ideas? I know this is horribly written. I've seen the color coded wiring diagram but am still lost.

Thanks,
Kevin



[JetManiac]

“What's confusing me are the red with the split and black with the split. Obviously the eyelet on the black split goes to the ground but where does the female go? And no idea where either the male or female red on the red split go.”

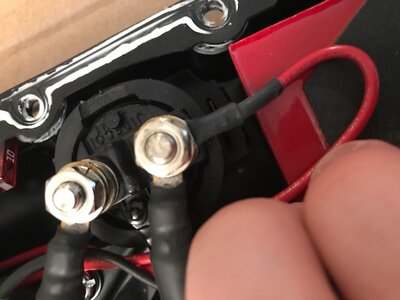

Disconnect the red tap wire off of the battery cable on the solenoid and the msd red m to f goes between the wire you just disconnected.

The black wire with eyelet goes to ground. The black wire with the orange wire have a black plastic sheathing where they leave the msd and both go the the coil. Any extra black m/f do not need to be hooked to anything, just extra ground connections.



[ksarge91]

“What's confusing me are the red with the split and black with the split. Obviously the eyelet on the black split goes to the ground but where does the female go? And no idea where either the male or female red on the red split go.”


"Disconnect the red tap wire off of the battery cable on the solenoid and the msd red m to f goes between the wire you just disconnected."
Right now the tap wire goes to a fuse and then has a female end, to a male tap wire which is tapped into the small positive on the solenoid and the red coming from the start/stop switch. So the red male from the enhancer should go to a tap between the small positive on the solenoid and the red on the start/stop?

"The black wire with eyelet goes to ground."
And the female doesn't go anywhere?

"The black wire with the orange wire have a black plastic sheathing where they leave the msd and both go the the coil."
Got it

Any extra black m/f do not need to be hooked to anything, just extra ground connections.



[JetManiac]

Right now the tap wire goes to a fuse and then has a female end, to a male tap wire which is tapped into the small positive on the solenoid and the red coming from the start/stop switch. So the red male from the enhancer should go to a tap between the small positive on the solenoid and the red on the start/stop?

Yes, it is supposed to go in line before the fuse.


The black wire with eyelet goes to ground.

And the female doesn't go anywhere?

To any other male ground, but you always have a few not needed.
