Squarenose chinpad

[IceRocket1286]

do I remove the white padding underneath to turf it, or do I turf over it?



[hangtime]

You turf right to the plastic man :headbang: remove the foam and sand the plastic with 60 grit and your golden :headbang:



[sflsurfrider]

spring clamp every square inch of the outer lip while drying or it will come off.



[IceRocket1286]

alright, ill check it out.


i was thinking blowsions glove fit. it looks cool, but seems sloppy. I want staple, but staple is UGLY



[sflsurfrider]

rickster did staples. it looks good from the top, but then the stocker is stapled as well. make sure you get the turf good and warm/flexible before applying. i did mine with 2 slices near the back. i did sakit2me's with no cuts at all. both look very clean but i prefer no cuts.



[IceRocket1286]

Ok, i might try that tonight. i emailed apdesigns about a custom one so im waiting on them



[sflsurfrider]

theres always the alternative...... rivets:booty:



[IceRocket1286]

I forgot about rivets! W00t!



[kawasakit2me]

One piece, no cuts.... oh yeah!:approve: :afro: :naughty:



[Rickster]

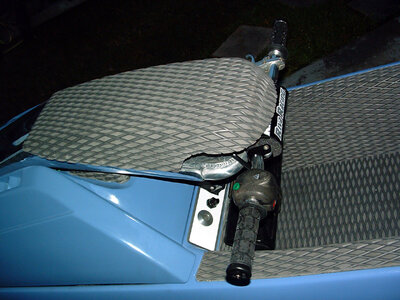

I originally glued and stapled the turf on my nose pad, and it held up great. When I had to modify the pad to accomodate the umi steering and straight bars, I turfed straight onto the platic, and bevelled the edges.

Wroks much better, and looks much cleaner.



[IceRocket1286]

you have to modify your chinpad for umi steering and 0 degree bars?



[Rickster]

yes, you have to cut the side of the pad all the way back the screw insert. I put UMI steering, with a -2 xmetal plate and xmetal straight bars.

Without the mod, I've pretty much f*cked up my sterring cable...:17:



[hangtime]

When turfing your chinpad you have to glue it on with contact cement first .
I wrapped mine right around to underneath the plastic for the best neat clean look .
I also use the black rubber based super glue used to glue the tires on remote control cars to seal the edges after I wrapped it underneath .
There is no better way ,heat up the truf with a hair dryer for easier molding to the chin pad .
If there are any depressions in the plastic just go over them and don't try to turf the exact shape of the plastic .:headbang:

I'll post a pic when I can get one for ya :headbang:



[IceRocket1286]

hangtime you got a pic yet?

Im waiting for my UMI steering to get here so I can bolt it up, and see how my chinpad and bars like eachother.



[hangtime]

hangtime you got a pic yet?

.

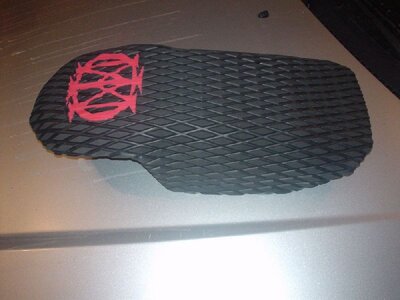

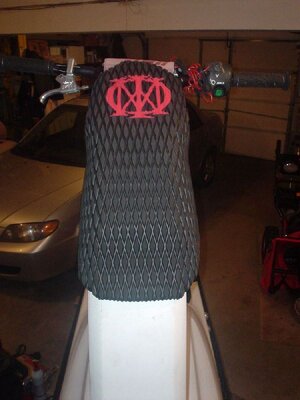

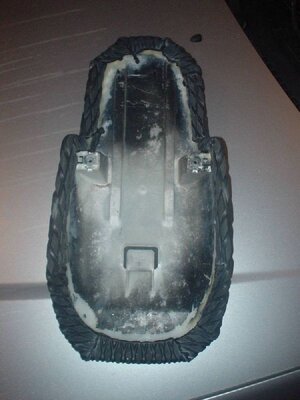

Here ya go :headbang: You can see in the second pic how I wrapped it underneath about an inch and then sealed it with the black super glue which I got at a hobby shop (used to glue tires on )



[IceRocket1286]

cool. looks good, and I like the red turf logo!



[hangtime]

cool. looks good, and I like the red turf logo!

It's a band logo ,Dream Theater :headbang:
