LPW / Zeeltronics MS01 Updated! In Stock Now!!

View attachment 443810


After a Very Successful Test Period and Daytona Freeride Debut, I'm now offering the MS01 CDI for Pre-Sale. Expected Early March delivery date.
CDI will come, MS01 CDI Brain, Programing Cable & Software, Pre-Assembled Duetsch connectors , and mounting Bracket. List will be $650.00 USD.
Special Introductory Pre-Sale pricing is $600.00 USD until end of January 2024, 50% deposit required to lock in this price.

Hall Sensor Upgrade package will include (2) Hall Sensors, (2) Mounting Blocks, 62T Case plug, Duetsch Connector, Hardware $125.00 USD

Please Email all MS01 Pre-Sale inquiries to paul@lehrperformance.com

I have worked closely with Zeeltronics over the past 15 - 16 months to develop a MSD 42351 replacement option. That option is nearing completion of testing.
I would like to present the Zeeltronic MS01 TL CDI This is a Fully Programable, Two Channel, switch on the Fly CDI, offering High Spark output, Kick-Back Starting protection , Utilizing MSD 42351 components. Option to run Std MSD triggers, Or Hall Sensors.
MS01 will be offered Exclusively Thru LPW. Demonstrations and display will be at Daytona Freeride 1/11-14. Demonstration’s will be at Flatwater Fri / Lake Diaz, and static display Vendors Alley/ Saturday at the HardRock. Come see what this New TL Ignition option can do!

I can't read Zeeltronics yet, so I am assuming this will work good on the 800+4 build for mine. :)
Did my credit score allow me to fall in the back of the line?


Jr.

Standing Tall
Staff member
Site Supporter
Location
Hot-Lanta
Bring the MS01 thread back to the Top! Riding season is upon many of us now. Shop is active!
i have continued testing the MS01 with Solid results. Hall Sensor Kits are now in stock and Available.
I have done run of 62T Stator plates for both the MSD triggers and Hall sensors.
Feel free to call and learn about the MS01. Performance is proving to be on Point!
MS01 CDI $650.00
Hall Sensor kit (2 hall sensors, Pitch Sensor mounts, Case plug, Duetsch connector and sheathing in kit) $149.95
Alum 62T stator plate $149.95
Installation onto your MSD TL Plate Avail
MSD TL Triggers, Coils, Wire sets, and Bombardier solenoid's also in stock
In Stock, Ready to go!
404-405-0208 to text, or paul@lehrperformance.com for fastest responce.


Attachments

  • IMG_7348.jpeg
    174.4 KB · Views: 52
  • IMG_6770.jpeg
    310.5 KB · Views: 46
  • IMG_7057.jpeg
    253.9 KB · Views: 46
  • 411712911_307306308382247_7965111099136208031_n.jpeg
    64.2 KB · Views: 37
  • LPW-MS01-Ideas-1.jpeg
    97.6 KB · Views: 63
Anyone used this on a xscream 900RR , what static angle would you recommend
Anything between 34-38 degrees i like using.
Its not like msd tl that has a few degrees of static thats able to be used, in the zeel you need to have altleast one degree greater static then you want to fire due to the calculation of the cdi
So if you run 32* ign you need to have atleast 33 but if you have 33 or 38 doesnt matter, but over 40 usually starting to be hard for the cdi to calculate

Anything between 34-38 degrees i like using.
Its not like msd tl that has a few degrees of static thats able to be used, in the zeel you need to have altleast one degree greater static then you want to fire due to the calculation of the cdi
So if you run 32* ign you need to have atleast 33 but if you have 33 or 38 doesnt matter, but over 40 usually starting to be hard for the cdi to calculate
Ok that make sense , I’ve got it set to 35deg so will be testing today , thanks


Jr.

Standing Tall
Staff member
Site Supporter
Location
Hot-Lanta

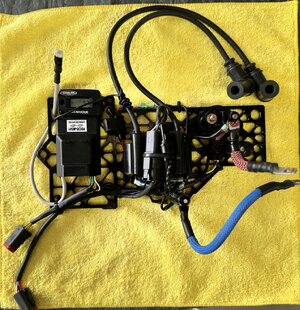

Pretty sexy ignition system. We finished our first unit tonight. Very happy with how simple and streamlined it is. Thanks for all the work on these Paul! They kick ass!
Nice install Dave! Thanks for coming on board the with the MS01!


Jr.

Standing Tall
Staff member
Site Supporter
Location
Hot-Lanta
What’s the difference between using the MSD pickups and hall sensors , is there any performance difference or is it just cost ??
I'm finding a performance advantage to the Hall sensors. the timing of the spark is more precise, plus its a longer duration due to magnet travel across it.
and yes, much more cost effective. MSD triggers are list $94 each now. The complete install kit to switch to Hall sensors is $149,95 Thats both sensors, Pitch sensor mounts, case plug and wiring components. you still mount on your msd stator plate.
