Super Jet Help me with R&D dry pipe install!!!

[Christianson]

I née help with the water hoses on this R&D pipe. I don't know which hose goes to my head and what goes to the front of the pipe. I was told this pipe is a lot like the factory b pipe. I only have two fittings on my headpipe, I'm just not sure which goes where



[yamaha415]

Does this help?



[Christianson]

That does help but it seems like there's a lot more hoses going on there then mine has . I have a stock head and only one pisser right now. I could use a little more input if anyone knew anything . Even some info about a factory b pipe would hhelp. Thanks



[3rid]

sorry for the delay... I think you have the wet version...

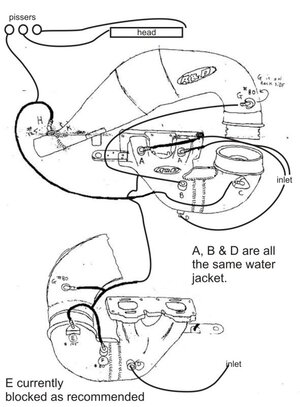

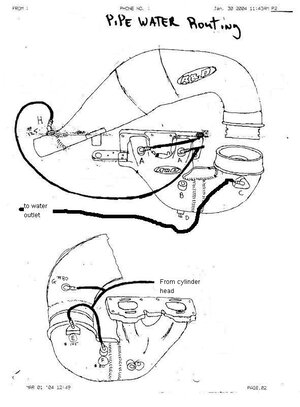

here is some diagram I found for you on my hard drive...
believe they're coming from wax or tricky... from another subject but could not find the original thread...

hope this helps...
