Blaster Confirm my wiring

[motoman3000]

Putting a blaster kawi 1100 together and just looking for an "atta boy" or "thats wrong" on my wire routing cause its been a while :

Batt pos+ >> ebox pos+ term >> starter pos+ term
Batt neg - >> ebox neg - term >> starter ground term



[OCD Solutions]

Umm, no. Think of the solenoid in the Ebox as one big switch, that is turned on by a smaller switch, aka, start button.

Battery + to one side of ebox solenoid. Should be same side as the red wire that feeds the CDI, bilges, etc
Other side of ebox solenoid to starter. (there should be nothing else on this side of the solenoid.)

battery neg - direct to engine case, preferably same bolt that holds starter to case,



[motoman3000]

Thanks for explaining that. I'll put it in my pipe and smoke it. Then hopefully ride off into the sunset!


Sent from my iPhone using Tapatalk



[OCD Solutions]

Something I should have asked earlier, Is this a Kawi ebox or Yamaha? My advise applies to a Yamaha ebox only.



[motoman3000]

Kawi 1100. Has the two posts


Sent from my iPhone using Tapatalk



[OCD Solutions]

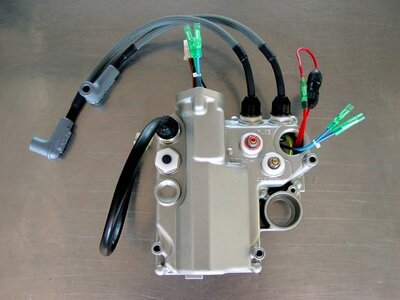

Should still be the same theory then, just external to the ebox. Are they really marked + and - or is one red and marked "Battery" while the other post is marked "Starter" like in this pic..



[motoman3000]

I got it. Jss did the rebuild. Looks just like your pic. One post has red dot.
