FX-1 FX-1 144mm trim

[Flash-FX]

In preparation for the 08 season, a inspection of the pump revealed a reduction nozzle issue... some Broken vanes. Hmmmm???, I had this blaster nozzle laying around for a replacement.

After riding WaveHog's and Special FX's ski's with the adjustable trim setup (which is really cool) it is time to give this a shot on the 144mm. Using a Kawi X2 Trim/steering nozzle arrangement, it amazingly fits perfect on the Yamaha/Blaster max flow Pro-Tec nozzle.

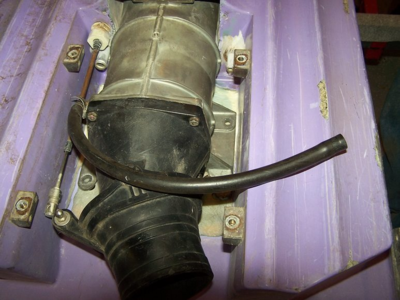

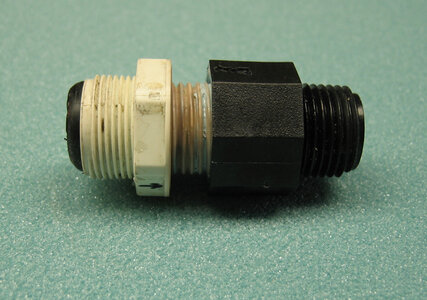

Since the Trim ring sets back the cable attach point about 1", I found a sprinkler riser extension worked out as well as a cable end extension. New heim joint ends eliminate all excess steering slop.

One thing I did notice is that the stock Yamaha 144mm reduction nozzle used 2,1mm shims between the ears and the hull. The Pro-tec Blaster nozzle need 4,1mm shims to do the same job.??

Test report soon...:smokin:



[D Slicker]

Gordon = Mad scientist.....



[Flash-FX]

Gordon = Mad scientist.....

Ha HA...:scratchchin:



[Slug]

Looking forward to hearing how it handles



[Flash-FX]

Hey Slug...welcome back! Sorry to hear about your driveline issues.

The advantage of using the Superjet RN steering cable with the Kawi 650-X2 nozzle is that you still get 25 degrees of nozzle deflection (each way from center,50degrees total). A little more than stock.



[Flash-FX]

Ok...so here's the low-down on fine tuning the FX-1 pump conversion (650 Kawi OR 144mm Yamaha). After much testing (trial & much error), resolving the goofy handling issues has come down to this. The Kawi X-2 nozzle with trim must be used in order to get your boat to be ridable. The standard nozzle setup creates too much downward thrust that creates a high speed instability. (A weird nose down chine walk). You guys like to ride fast at times...don't you?
Another problem...the steering cable is too short to fit. Since the trim ring moves the steering nozzle about 1" back, you"ll need a cable extension. Either make a cable end extension, or move the whole cable back like I did (see the 1/2" riser pic in above post...BTW...use a PVC one, the marlex one breaks).

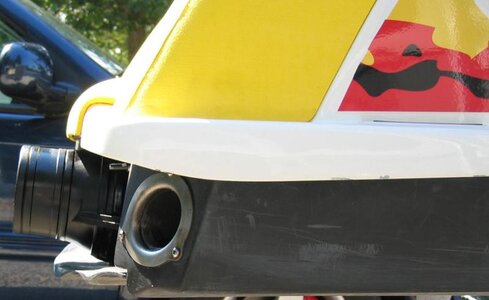

I ride around with the nozzle trimmed up part way most of the time (See pix below). Sorry for the ride/handling report delay...it took some time to get the details worked out.

Thanks goes out to Special-FX for the X-2 nozzle donation for EXPERIMENTATION.

Hang on! The FX-1 pump mod is well worth the effort!



[LIVE2RIDE Powersports]

Ok so i finally rode a ski with trim and it was a 750sx. Honestly i thought it sucked asss. It seems when u would pull the lever and bunny hop it the nose wanted to face down. Thats not what it should do, right? When i think of trim i think of hitting a sweet boat wake and getn the nose almost vertical, which i can do on my stock pump fx-1. Thats what should happen , right?



[Idok]

Ok...so here's the low-down on fine tuning the FX-1 pump conversion (650 Kawi OR 144mm Yamaha). After much testing (trial & much error), resolving the goofy handling issues has come down to this. The Kawi X-2 nozzle with trim must be used in order to get your boat to be ridable. The standard nozzle setup creates too much downward thrust that creates a high speed instability. (A weird nose down chine walk). You guys like to ride fast at times...don't you?
Another problem...the steering cable is too short to fit. Since the trim ring moves the steering nozzle about 1" back, you"ll need a cable extension. Either make a cable end extension, or move the whole cable back like I did (see the 1/2" riser pic in above post...BTW...use a PVC one, the marlex one breaks).

I ride around with the nozzle trimmed up part way most of the time (See pix below). Sorry for the ride/handling report delay...it took some time to get the details worked out.

Thanks goes out to Special-FX for the X-2 nozzle donation for EXPERIMENTATION.

Hang on! The FX-1 pump mod is well worth the effort!


My 144mm pump adventure...http://www.x-h2o.com/threads/9841

interesting reviews flash...

I guess I need to get my ass in gear and get this f1 going..it uses a std. superjet shaft so it should handle WAY differently



[DangerBoy]

I had the same issue with the first one I did, I thought I didnt get the pump angle correct with the firewall, turned out everything is in perfect alignment

I solved the issue by using a protec blaster nozzle and a yam Raider trim ring and reduction nozzle

It kept the nozzle form sticking out so far I did have to make a 1 inch steering cable extension though

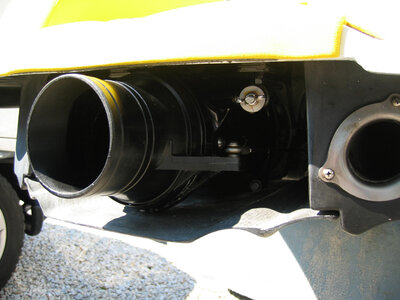

as far as adjustment goes you can see the pics of how I did it

I use it as a Fixed trim by adjusting the nut on the back of the tray, For surf riding it takes a substantial amount of up thrust to keep from subbing



[Flash-FX]

Ok so i finally rode a ski with trim and it was a 750sx. Honestly i thought it sucked asss. It seems when u would pull the lever and bunny hop it the nose wanted to face down. Thats not what it should do, right? When i think of trim i think of hitting a sweet boat wake and getn the nose almost vertical, which i can do on my stock pump fx-1. Thats what should happen , right?

The original "trim" systems were designed for closed course racing. At the start line you would pull in the lever to make the nozzle point downward to aid in the launch to the first turn (thats prolly what your buddy's 750sx is set up for). In later years the idea was reversed to make the nozzle point upward for freestyle tricks (backflips and such). The trim we are using has no levers or cables, but it is a "set it" and ride kinda thing. It really compensates for other
issues (thrust line, pump diameter...ect).

interesting reviews flash...

I guess I need to get my ass in gear and get this f1 going..it uses a std. superjet shaft so it should handle WAY differently

Yep...Get that thing together! I'd like to see that boat in Daytona this year...
& don't forget the "trim". BTW my current ski uses a '05 SJ drive shaft.

I had the same issue with the first one I did, I thought I didnt get the pump angle correct with the firewall, turned out everything is in perfect alignment

I solved the issue by using a protec blaster nozzle and a yam Raider trim ring and reduction nozzle

It kept the nozzle form sticking out so far I did have to make a 1 inch steering cable extension though

as far as adjustment goes you can see the pics of how I did it

I use it as a Fixed trim by adjusting the nut on the back of the tray, For surf riding it takes a substantial amount of up thrust to keep from subbing

Secret specs! Love the adjustment! Good job!

I didn't really care about the nozzle sticking out the back (I'm just glad it works). Are any of you guys using the SJ steering cable for the extra nozzle travel?



[LIVE2RIDE Powersports]

So you guys have it set up with no cables and levers? I was wanting to do that but couldn't figure out how. How do they ride just cruis'n around? Alot of cavatation?



[Flash-FX]

So you guys have it set up with no cables and levers? I was wanting to do that but couldn't figure out how. How do they ride just cruis'n around? Alot of cavatation?

No cables and or levers, just a simple adjustable nozzle. The stock angle that is "pre-set" at yamaha might be good for a stock SJ, but it has too much down for my FX. (a high speed handfull). I like to have the nozzle cranked up a little...higher than stock for high speed, lower it down in the surf. It works great.

:dunno: Cavitation :dunno: from the nozzle adjusted up a little?



[95FX1]

great thread....learnd a ton about my fx1...



[bigair1080]

Where did you get the hardware for your trim setup?

In preparation for the 08 season, a inspection of the pump revealed a reduction nozzle issue... some Broken vanes. Hmmmm???, I had this blaster nozzle laying around for a replacement.

After riding WaveHog's and Special FX's ski's with the adjustable trim setup (which is really cool) it is time to give this a shot on the 144mm. Using a Kawi X2 Trim/steering nozzle arrangement, it amazingly fits perfect on the Yamaha/Blaster max flow Pro-Tec nozzle.

Since the Trim ring sets back the cable attach point about 1", I found a sprinkler riser extension worked out as well as a cable end extension. New heim joint ends eliminate all excess steering slop.

One thing I did notice is that the stock Yamaha 144mm reduction nozzle used 2,1mm shims between the ears and the hull. The Pro-tec Blaster nozzle need 4,1mm shims to do the same job.??

Test report soon...:smokin:

Where did you get the hardware for your trim setup?



[bigair1080]

Where did you get the hardware for your trim setup?



[Flash-FX]

McMaster-Carr And Lowes.



[jpswift1]

Ok...so here's the low-down on fine tuning the FX-1 pump conversion (650 Kawi OR 144mm Yamaha). After much testing (trial & much error), resolving the goofy handling issues has come down to this. The Kawi X-2 nozzle with trim must be used in order to get your boat to be ridable. The standard nozzle setup creates too much downward thrust that creates a high speed instability. (A weird nose down chine walk). You guys like to ride fast at times...don't you?
Another problem...the steering cable is too short to fit. Since the trim ring moves the steering nozzle about 1" back, you"ll need a cable extension. Either make a cable end extension, or move the whole cable back like I did (see the 1/2" riser pic in above post...BTW...use a PVC one, the marlex one breaks).

I ride around with the nozzle trimmed up part way most of the time (See pix below). Sorry for the ride/handling report delay...it took some time to get the details worked out.

Thanks goes out to Special-FX for the X-2 nozzle donation for EXPERIMENTATION.

Hang on! The FX-1 pump mod is well worth the effort!

I know this is a very old thread, but a couple things that I wanted to bring up with the Kawasaki 140 pump swap on the FX1. The Jet Dynamics ride plate has a concave portion raised up in the center and it hits on the X2 trim nozzle when used in the FX1. I got around this on my build by using a standard 650sx/ts650/sc650 non-trim nozzle and it will fit (plus I didn't need the 1" steering cable extension). Now after reading your post I'm worried that it won't ride correctly with the non adjustable trim nozzle. Why is that? I see that people have used the non adjustable trim nozzle before, here's Wat-Con's build pic. Should I just get a different ride plate so I can use the X2 trim nozzle and the 1" steering cable extension (available through Hot Products), or will I be fine with the non-trim 650 nozzle? The only difference I see is that the non trim Kawasaki 650 nozzle is a little shorter.



[Flash-FX]

I know this is a very old thread, but a couple things that I wanted to bring up with the Kawasaki 140 pump swap on the FX1. The Jet Dynamics ride plate has a concave portion raised up in the center and it hits on the X2 trim nozzle when used in the FX1. I got around this on my build by using a standard 650sx/ts650/sc650 non-trim nozzle and it will fit (plus I didn't need the 1" steering cable extension). Now after reading your post I'm worried that it won't ride correctly with the non adjustable trim nozzle. Why is that? I see that people have used the non adjustable trim nozzle before, here's Wat-Con's build pic. Should I just get a different ride plate so I can use the X2 trim nozzle and the 1" steering cable extension (available through Hot Products), or will I be fine with the non-trim 650 nozzle? The only difference I see is that the non trim Kawasaki 650 nozzle is a little shorter. View attachment 435221

Jp... After all this time the best all around ride plate falls back to the stocker. It's good in the surf and riding WFO across the bay. The problem with them is that they are made from thin lightweight aluminum that starts to degrade (electrolysis) after salt water use. They form cracks that just get worse with time. Fresh water guys are lucky here. The aftermarket plates are much thicker and heavier, resisting degrade. Basically, you want one that runs flush with the bottom.

As far as trim goes, if you don't want to use any trim, don't. You can always add it on later. You'll find out pretty quick if you like it (no trim) or not. All the guys that I know with pump modded FX's have some sort of trim. Some set it and forget it, and some adjust it on the ride as the fuel gets burned off. I do the latter.



[Flash-FX]

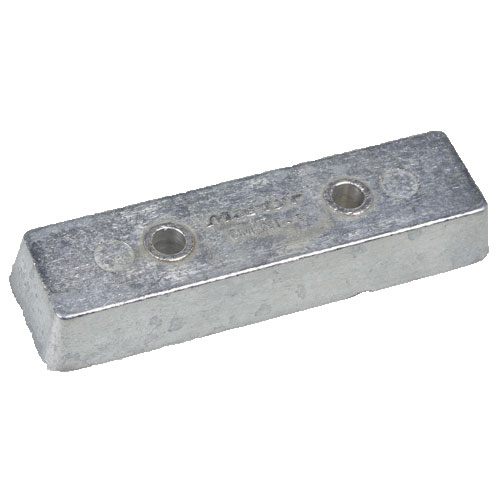

Here's a good example of galvanic corrosion on a Skat Trak mag pump. The stainless insert is still like new, but the OEM housing dissolves away. This is round #2 for this pump. I fresh water wash my ski every time and spray it down with Dupont teflon silicone spray. AND added a strip of chemically pure zinc metal (for plating) to the side of the housing. Nope, that didn't help much either. Salt water gets between the 2 metals and acts like a battery. Fun to play in but doesn't play well with our toys...



[DrewOregonian]

In preparation for the 08 season, a inspection of the pump revealed a reduction nozzle issue... some Broken vanes. Hmmmm???, I had this blaster nozzle laying around for a replacement.

After riding WaveHog's and Special FX's ski's with the adjustable trim setup (which is really cool) it is time to give this a shot on the 144mm. Using a Kawi X2 Trim/steering nozzle arrangement, it amazingly fits perfect on the Yamaha/Blaster max flow Pro-Tec nozzle.

Since the Trim ring sets back the cable attach point about 1", I found a sprinkler riser extension worked out as well as a cable end extension. New heim joint ends eliminate all excess steering slop.

One thing I did notice is that the stock Yamaha 144mm reduction nozzle used 2,1mm shims between the ears and the hull. The Pro-tec Blaster nozzle need 4,1mm shims to do the same job.??

Test report soon...:smokin:

Man this is an excellent write up. As well as engineering. Not quite sure what I would have done without the internet on this build. Oh wait I do know ....my ski would be boring with absolutely no personality. But thanks to the internet and new friends who are generous with their time and knowledge, I've been able to learn alot.

I've tracked down a couple X2 nozzles and am going to try to run this setup. What's the possibility of getting a parts list for your adjustable trim contraption? I would like to run one. But creating something like this isn't exactly one of my strengths. I'd even buy one or two of them if I was able to.
