750 in a box

One of my buddies brought me a 750 that he had taken me apart I rebuilt the motor

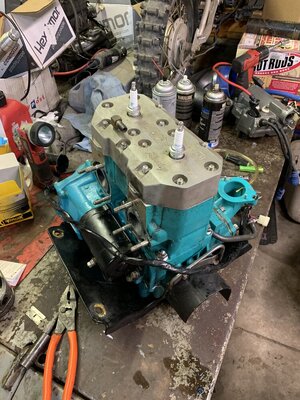

My question is , what direction does the head go ?it has a ocean pro head is it that way or do I have it backwards


Attachments

  • D4FCEEDA-FEEC-430F-B675-0A49DDF6FBC0.jpeg
    199.7 KB · Views: 25

WFO Speedracer

A lifetime ban is like a lifetime warranty !
Location
Alabama
Looks correct to me the water outlet on 750--800 Kawis is always on the left side of the head and the protrusions on the exhaust side match up with the protrusions on the cylinder.


WFO Speedracer

A lifetime ban is like a lifetime warranty !
Location
Alabama
Charge coil (Brown to Brown) 0.7 - 1.1 ohm
Exciter coil (Red to Red) 266-398 ohm
Pickup or Sense coil 396-594 ohm

CDI output-orange/Black = should be 100 DCV or More.
charge coil output-Red/Pur = should be 100 DCV or More.
Trigger output-Blu/Green = 3.0DCV or More
